RF 433
Product Type
PIR Sensor
detection range
12M 110 degrees
feature
with tamper switch
technology
PIR
Frequency
433mhz
code
EV1527
9V Battery Powered
Indoor Wireless Infrared Alarm Sensor 9V Battery Powered 433MHz EV1527 Wide Angle Detection for Burglar Security System
Introduction:
This product is a high stable infrared motion sensor detector. It adopts advanced signal analysis processing technology, providing super-high detection and anti-fault alarm. When intruder passes through detection zone,the detector will detect the movement of the intruder by itself,and emit wireless signal to alarm host. The product is suitable for housing estate,villa,factory,warehouse,office building and so on.

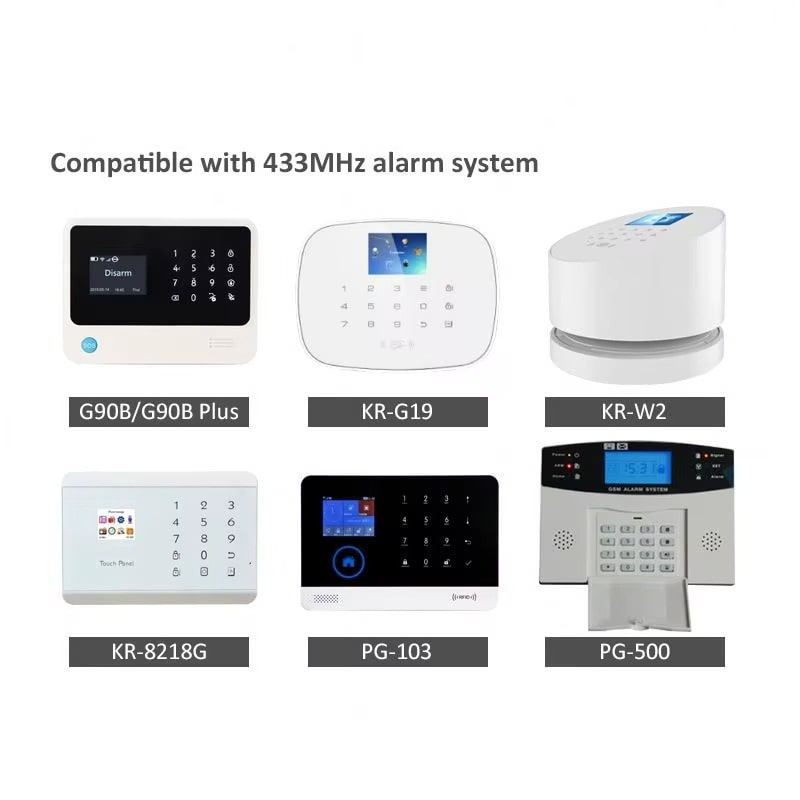

Once the motion sensor detector detects the moving object, it will immediately send the wireless signal to the alarm panel, and then the alarm panel will send the alarm message to your mobile phone.
Once the motion sensor detector detects the moving object, it will immediately send the wireless signal to the alarm panel, and then the alarm panel will send the alarm message to your mobile phone.
Specification:
Operating voltage: 9V 6F22 battery
Working current: ≤30mA
Static current: ≤20uA
Emission distance: ≥100m(open air,no interference,walls,etc.)
Installation way: Wall Mounting
Installation height: 2.2 m
Detection degree: 110°
Detection Range: 12m
Emission Frequency: 433MHz
Coding method: EV1527

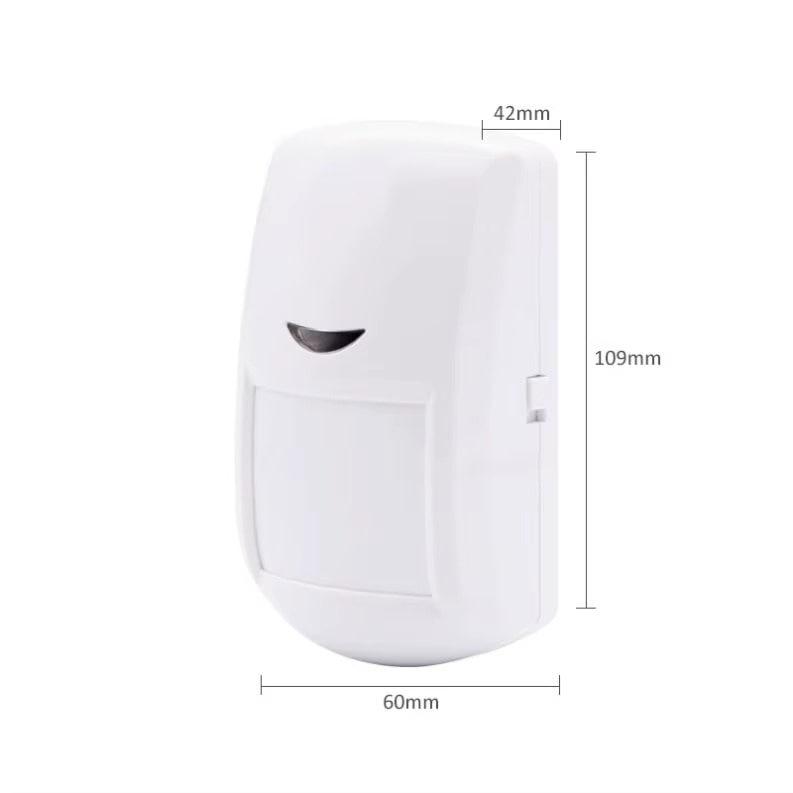

Dimension: 109x60x42mm
Notices:
1. The detection distance of PIR detector is affected by outside temperature.
2. Burglar-proof product can strengthen security coefficient,we should heighten safety consciousness to avoid lost.

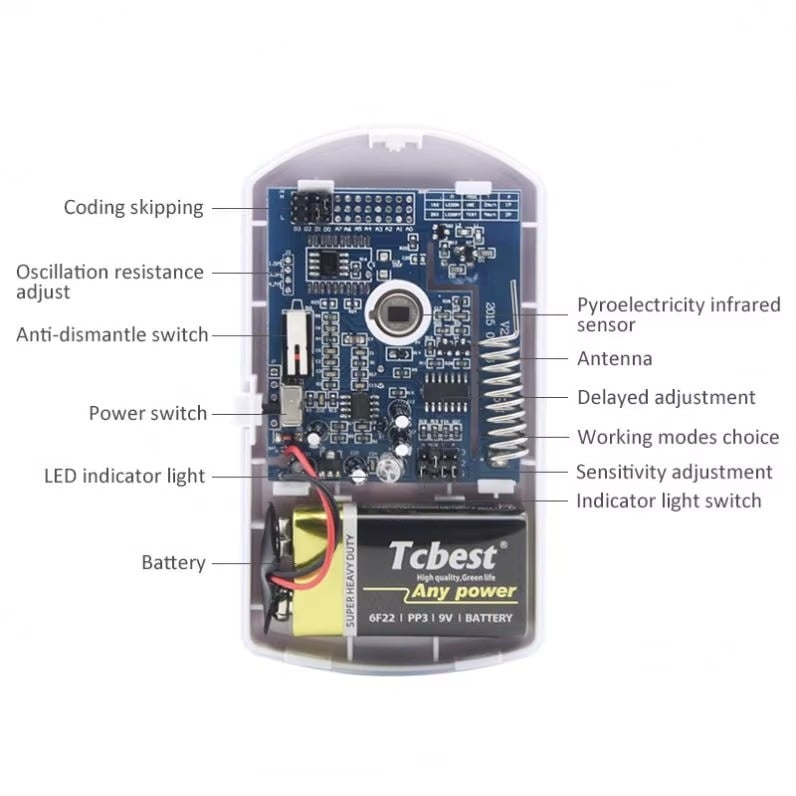

3. After debugging detector successfully, in order to strengthen the elusive capacity, suggest disconnecting LED jumper, and make
LED indicator light be off.
4. When voltage is lower than set point,the indicator light keeps flashing and emits alarm signal towards the outside,warning the
host to exchange battery to keep working normally.
Coding method: EV1527
Dimension: 109x60x42mm
Notices:
1. The detection distance of PIR detector is affected by outside temperature.
2. Burglar-proof product can strengthen security coefficient,we should heighten safety consciousness to avoid lost.
3. After debugging detector successfully, in order to strengthen the elusive capacity, suggest disconnecting LED jumper, and make
LED indicator light be off.
4. When voltage is lower than set point,the indicator light keeps flashing and emits alarm signal towards the outside,warning the
host to exchange battery to keep working normally.
Note:
Defualt version is 433MHz EV1527.
